Flash Back Ice Cream Parlor Design

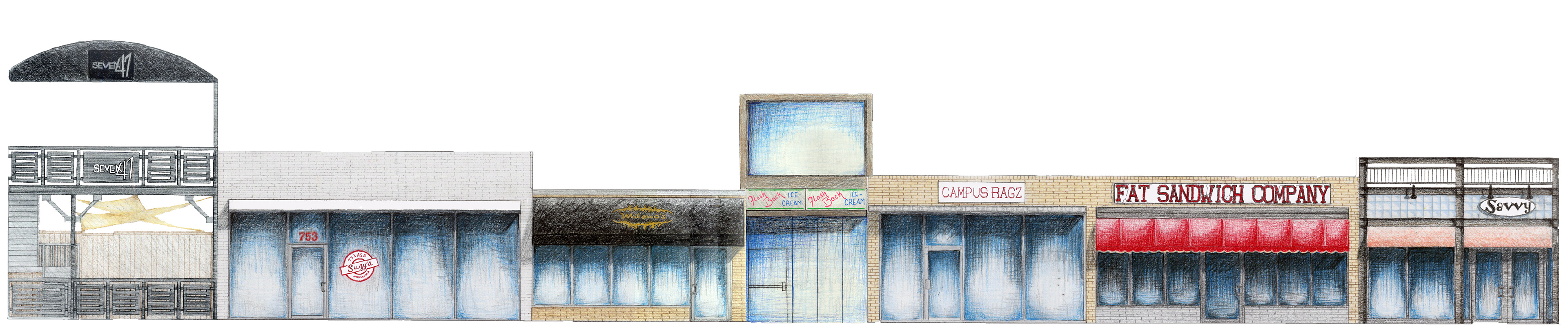

For this project I was asked to design a space that fit into a smaller than normal retail footprint (the size of an alley). The client I chose was an ice cream parlor to put on Campus Corner in Norman, OK, a popular location for college student and pre gaming for college football games.

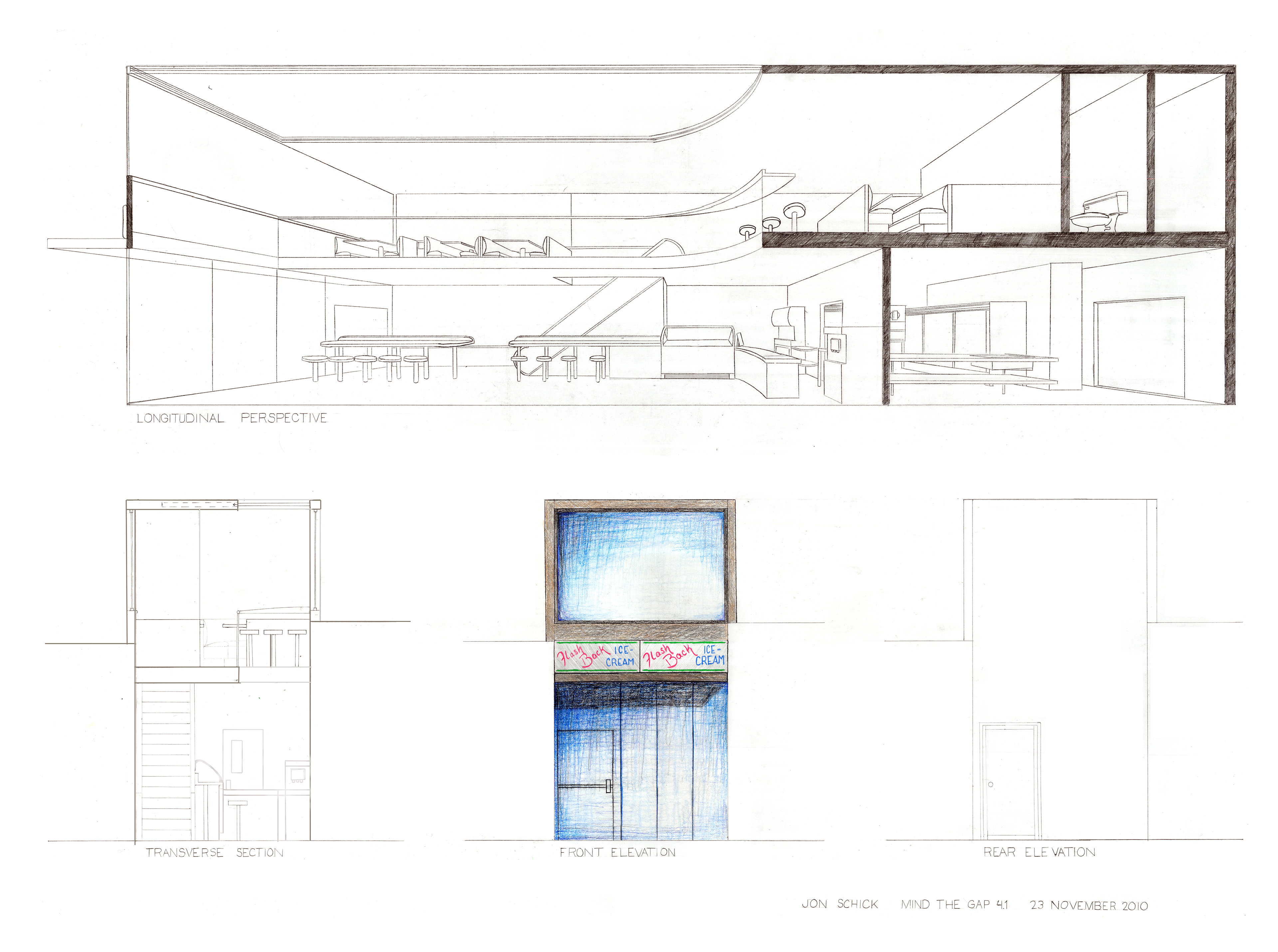

Elevation, section and floor plan drawings are all done by hand.
![](https://cdn.myportfolio.com/91aae0f58a95ae033cc2abb933196fc1/4bba6155-98bd-4dfb-bdb6-713dc1c755e1_rw_3840.jpg?h=d1e5b3b2997b6e8eae237fb50f8ee868)
I was given free-range to design and layout the shop along with the placement. To make the most of the real estate I made my parlor 2 stories with a sun roof and large open window to allow maximum light into the small space. All appliances and furniture are draw to scale as a result of extensive research of the items needed for a retail business like this. All walkways are designed to best adhere to ADA compliance despite the spacial limitations.
![](https://cdn.myportfolio.com/91aae0f58a95ae033cc2abb933196fc1/2ec683cf-ef8c-40f4-9a8d-ab4ce2dbeb8a_rw_3840.jpg?h=1f9683ca06e4cdaa7d718cf1b0835080)
![](https://cdn.myportfolio.com/91aae0f58a95ae033cc2abb933196fc1/525db85b-c586-4a9d-889b-2d37a93493f8_rw_3840.jpg?h=e148e3177d7edc3490540f441ba6e19f)
